Handle Assembly

Refining the Handle: Short Axle, Hybrid Bearing, Better Feel.

Technical:

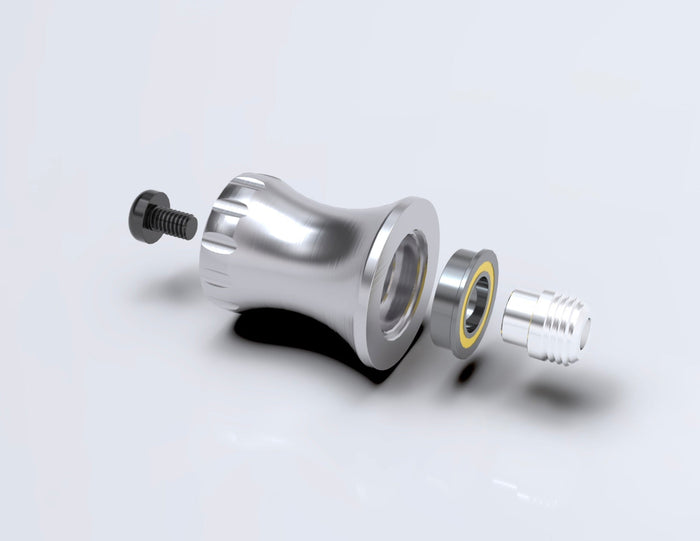

Spool → Short Thread-in Axle →  Flanged Hybrid Handle Bearing → Handle → Outboard Aluminum Retention Fastener

Feature:

All New design minimal span axle design

Thread-in minimal Span axle which carriers the handle which runs on a flange bearing with external retention fastener

Short-axle + hybrid bearing design for tighter alignment, higher stiffness, and friction-free rotation.

Function:

A compact axle threads directly into the spool, seating the flanged bearing on a stepped shoulder and locking the assembly with an exterior aluminum fastener.

Built around a spool-threaded axle and shouldered bearing support, locked from the outside.

Benefit:

The short axle architecture dramatically reduces leverage on the shaft—helping prevent handle bending or snap-off—while the hybrid ceramic bearing delivers near-zero rotational resistance for effortless cranking.

No long shaft to flex. No weak point to snap. Just a rigid, rock-solid crank feel—paired with hybrid ceramic bearings for ultra-smooth, resistance-free rotation.

What did we revise:

Evolution not a change-  The original dual-flange bushing arrangement was designed for stability, retained internally through the spool wall. In practice, even with optimized fits, the long load path could create a hint of friction and minor play when tension was set correctly.

The new design moves to a spool-threaded short axle + flanged hybrid bearing, retained from the outside. This short, supported architecture reduces leverage and improves concentricity—delivering crisper engagement and near-zero rotational resistance.

A spool-threaded short axle and shouldered bearing support eliminate shaft flex and breakage—while hybrid ceramic bearings keep the retrieve friction-free.

Wish Contributor :

The handle assembly had to match the strength of our proven bushing system, but deliver a higher level of refinement. That was non-negotiable. Scott Owens, a respected guide, pushed this point often. He reminded me that the handle is where the customer makes connection with the reel. Not just under load. Not just fighting fish. But in quiet moments—sitting at his desk, turning the handle, thinking about the next trip. It had to feel right beyond ergonomics and torque. So we engineered the bearing system to maintain structural integrity while delivering a fluid, precise rotation. Strong under pressure. Refined at rest. Because feel isn’t tested only on the water. It’s tested in the hand.

Part Numbers :

HS-1 (handle shaft), HB-1 (handle bearing), HA or HC- 4 or 5 (handle aluminum or carbon, HF-1 (handle fastener)

 Material alone does not explain drag power.

Carbon fiber, stainless steel, and heat-stable grease are only part of the answer. The other part is mechanical advantage.

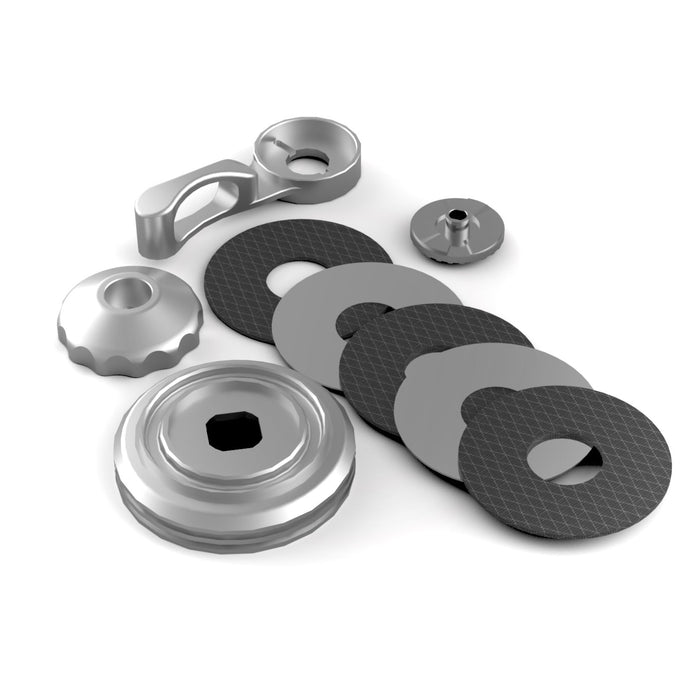

The reason our system can produce this level of power is the relationship between the cam ramp and lever. That mechanism allows the reel to compress the drag stack with far more controlled force than a simple single-screw tightening method.

A screw-style drag knob can create pressure, but it has limitations. It depends on direct tightening force. The user turns the knob, the system compresses, and the pressure increases.

A cam ramp and lever system changes the equation.

It converts lever movement into controlled compression. That gives the drag system a mechanical advantage, allowing it to apply significant pressure to the stack of friction plates without depending solely on a threaded knob being tightened down.

That is why the drag can feel powerful without feeling crude.

Power comes from compression.
Control comes from how that compression is applied.

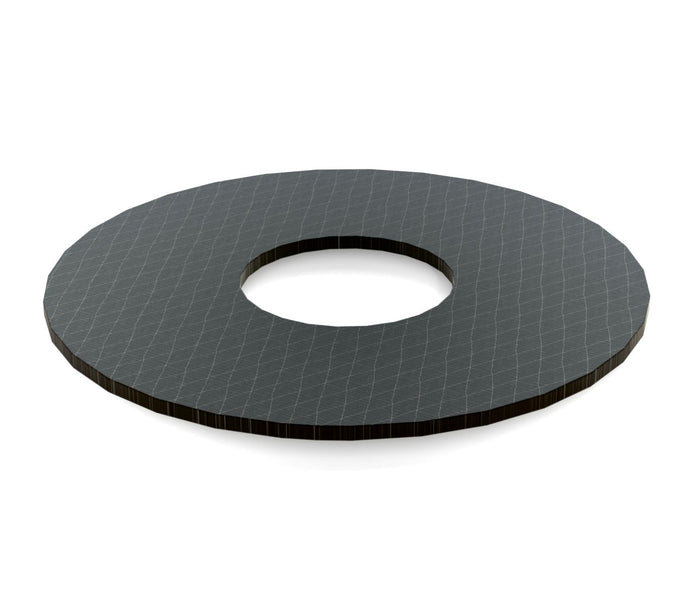

Wet Film Drag vs. Dry Drag Washers

A dry drag washer can work, but dry friction has a weakness: it can create sticking points.

That first moment of movement matters. In fishing terms, that is startup. If the drag hesitates, grabs, or releases inconsistently, the system is not truly smooth. A powerful drag that does not transition cleanly is not refined power. It is just pressure.

Our system uses a wet film approach with a heat-stable grease, such as Tef-Gel, to create controlled slip between friction surfaces.

That may sound counterintuitive. Why lubricate a drag system if the goal is resistance?

Because the right lubricant does not eliminate friction. It manages it.

The wet film creates layers of controlled movement between the plates. Instead of one dry surface trying to break free against another, the system has multiple slip points working together. That creates redundancy. More controlled slip points means fewer sticking points.

In simple terms:

Dry drag washers can create grab.
Wet film drag systems create controlled movement.

That difference matters when a fish changes direction, surges, or hits the reel with sudden load.
