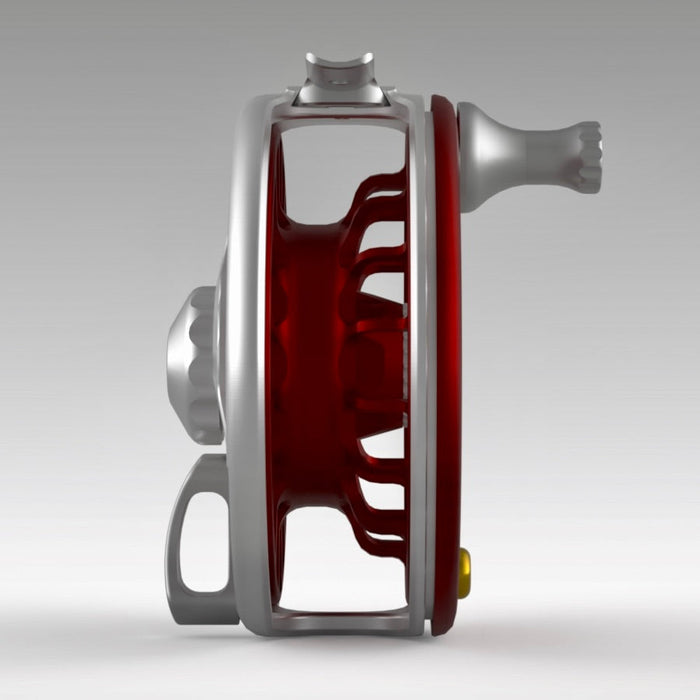

Built Around Purpose, Not Decoration:

A Smarter Spool: Stronger Curves, Better Backing Capacity, Cleaner Line Lay

Stepped  Fly Reel Spool Designed for Strength, Capacity, and Better Line Lay

While many fly reel designs treat the spool as a place for holes, decoration, or visual styling, my focus has always been different. I look at every feature as a problem-solving opportunity. If a shape, cut, curve, step, or opening exists, it should have a purpose beyond appearance.

With this spool, the goal was to blend function, performance, structure, and beauty into one design language. The shape is not a decoration added after the fact. The shape is the solution.

The stepped profile helps control where backing pressure builds. The deeper section moves load closer to the center of the spool, reducing leverage on the outer flange and keeping pressure nearer to the main shaft connection point. The large-radius transitions reduce stress concentrations, allowing force to move through the part more naturally instead of collecting at sharp corners.

At the same time, those structural decisions create the visual identity of the reel. The compound curves, depth changes, and radiused surfaces are not just engineering choices — they also give the spool its character. The design is meant to look intentional because it is intentional.

My philosophy is that performance parts should not need fake styling. If the engineering is thoughtful enough, the function becomes the art.

Features and problems that were solved.

The stepped spool design was intentionally shaped to manage both load and line lay. The deeper step on the side away from the handle creates additional backing capacity while keeping the highest backing pressure closer to the center of the spool and nearer to the mainframe/shaft connection point. This helps reduce the leverage created by line pressure at the outermost diameter of the spool.

The design serves several main purposes. First, it reduces the structural load on the outer bearing by moving more of the backing load inward, closer to the strongest part of the Main shaft (link to main-shaft). Next, it improves how the line naturally lays back onto the reel. When an angler retrieves the line, they often tilt the reel slightly, which naturally encourages the line to favor that deeper side of the spool. This helps create a more controlled and consistent line lay.

As a rule of thumb, the upper level of the spool is intended to carry the final passes of backing and then the shooting line. At that stage, the remaining line is typically the final 100–120 feet, which is larger in diameter and easier to manage visually and mechanically.

All step transitions use large-radius corners rather than sharp 90-degree edges. These radiuses transitions help distribute load, reduce stress concentrations, and improve strength by allowing the spool structure to carry pressure through smooth, compound curves. This is especially important in carbon fiber construction, where abrupt corners can create localized stress and potential failure points. Overall, the stepped and radiuses geometry is intended to increase backing capacity, improve line management, reduce outer leverage loads, and strengthen the spool through more efficient load distribution.

Results for solving problem and its Function

Advantages:

Benefits on the water

When Function Becomes the Art

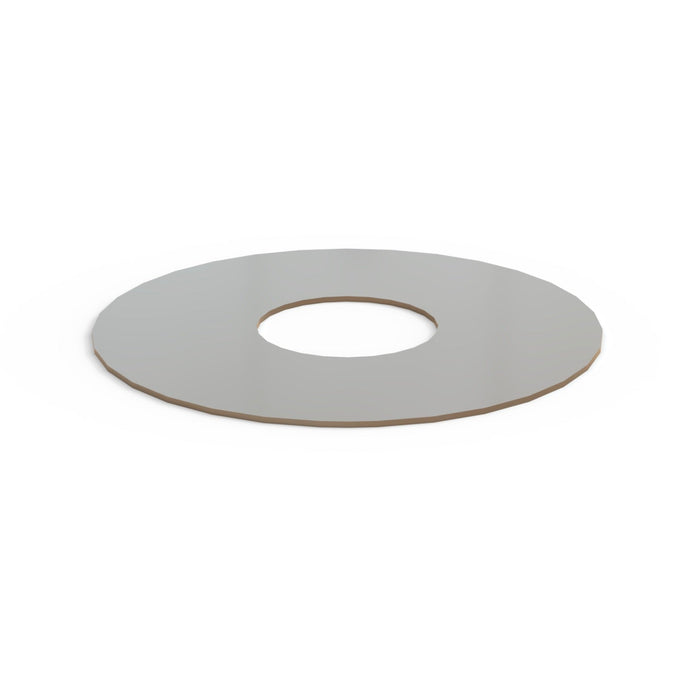

Stainless Steel Drag Washer Disk

Feature:

Multi stage element to create the lowest possible start up inertia.

Function:

non-abrasive component of the clutch assembly—surface discs

Consistent surface for friction disc to  rom carbon grab

Acts as an isolator from aluminum frame

Benefit:

Provides controlled friction not “grinding” abrasion like a carbon disc

What did we revise:

Nothing. We have been using this technology for the past 17 years. From the moment we entered reel manufacturing, we started with the highest level of materials and never compromised.

What Industries are these standard:

Automotive

Wish Contributor :

Wes designed a clutch pack that was a combination of our Conventional Lever drag reels and our Star drag reels that were known for exceptional smoothness and power

Part Number :

DWS- 4 or 5 (drag washer stainless steel)

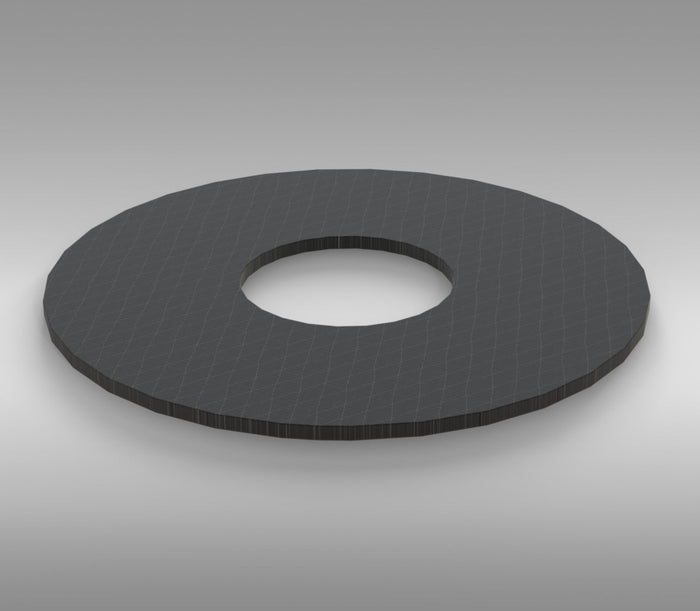

Carbon Drag Disc Washer

Feature:

High-performance carbon drag disc engineered for smooth, consistent pressure and long-term durability.

Function:

Creates stable friction and controlled resistance through the drag system while dissipating heat and maintaining performance under sustained runs.

Benefit:

Produces a smoother, more reliable drag with fewer spikes and surges—helping protect tippet, maintain control, and deliver dependable stopping power in tough conditions.

What did we revise:

This is the same clutch pack that built the Seigler name—kept intentionally unchanged because it delivers. Time-tested and trusted across countless hours on the water, it provides consistent engagement and dependable performance without compromise.

Wish Contributor :

Wes believed it was the only direction to go. Thousands of conventional reels have already proven themselves under extreme loads. That data matters. You don’t ignore success at scale. The strength comes from the right combination of materials, plate geometry, and controlled friction. The breakthrough came when Mike Andrews, owner of the world-renowned Tropic Star Lodge, suggested applying advanced film technology to the plates and carbon washers. That insight elevated the system. The films stabilize friction, reduce heat buildup, and maintain consistent pressure under sustained runs. It wasn't a theory. It was built on what already survives the harshest conditions in sport fishing. We refined it, applied it with precision, and made it our own.

Part Numbers :

DWC-4 or 5 (drag washer carbon)
